5 Watt 8-Inch LED Under Cabinet; 30K/40K/50K CCT Selectable; Dark Bronze; 120 Volt
by Nuvo
51
99
Pack Of: 1
Call for Availability
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 1.00"
Width: 3.50"
Finish
Dark Bronze
Product Overview
5 Watt 8-Inch LED Under Cabinet; 30K/40K/50K CCT Selectable; Dark Bronze; 120 Volt
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Category:
Undercabinet
Subcategory:
LED Undercabinet Lights
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
Dark Bronze
Category:
Under Cabinet & Cove
Sub Category:
Linear Strip
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
1.38
Each Length:
8.66
Each Width:
3.74
Length:
8
Lumens:
322L-366L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Amps:
0.042A
ANSI Base:
Integrated
Beam Angle:
105
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T24 Pending
CEC Web Text:
Lawful for sale
Country Of Origin:
Thailand
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable or Triac
Each Cube:
0.0259
Each Quantity:
1
Efficacy:
64.40/68.80/73.20 LPW
FCC Compliant:
Yes
Feature 1:
Counter Quick's high-quality design illuminates counter space with a clean, bright light that showcases natural and true colors
Feature 2:
Selectable CCT technology allows you to switch between 3000K, 4000K, and 5000K color temperatures; 90 CRI
Feature 3:

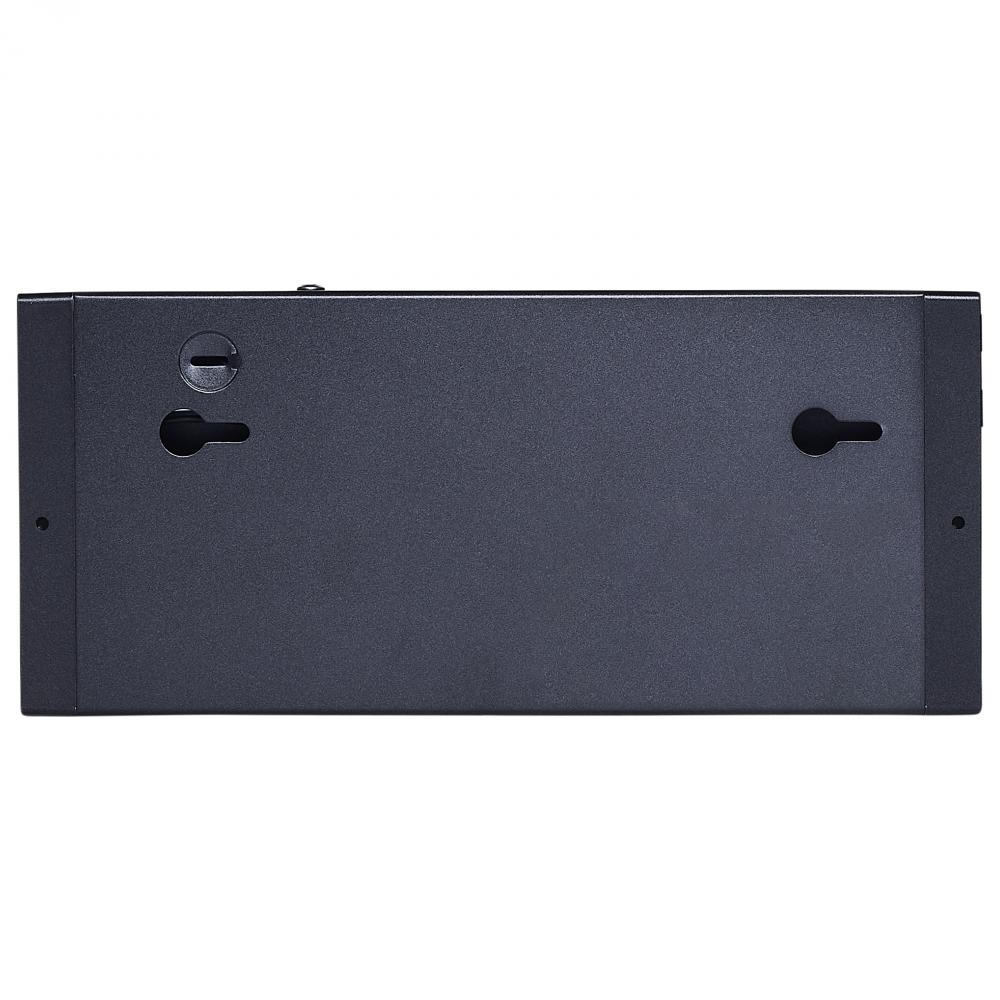

Two mounting options to best fit your installation: Use the integrated mounting screws or standard keyhole mounting
Feature 4:
Three wiring configurations for ease of installation: Direct Wire to Fixture, Direct Wire to Junction Box, or Plug into an outlet with Power Cord (sold separately)
Feature 5:
Various knockouts along the back and sides provide more access points for convenient wiring; An expanded internal compartment leaves room to work and stores the connected wire with plenty of room to close the fixture
Feature 6:
5W, Dark Bronze Powder Coated Aluminum body provides a high-quality, durable design that includes a textured lens for premium light distribution
Feature 7:
Low profile, slim design. Measures 8 in. Length x 3.5 in. Width x 1 in. Height
Finish Family:
Bronze
Fixture shape:
Rectangle
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
No
Impact Rating (IK):
IK08
Incandescent Equivalent:
20W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
Lens Finish:
Frosted White
Lens Material:
Polycarbonate (PC)
Long Description:
No matter how you hang it, install it, connect it, link it, wire it, or light it - the 63-520 8-inch Dark Bronze Counter QUICK LED under cabinet light is designed to help get the job done; with installation solutions that save on labor, quality, and durabi
Material:
Aluminum
Mounting Procedure:
Under Cabinet: Screws
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
No matter how you hang it, install it, connect it, link it, wire it, or light it - Counter QUICK LED under cabinet lights are designed to help get the job done; with installation solutions that save on labor, quality, and durability that make for a long, m
Safety Listing:
cETLus - Listed
Short Description:
UNDER CAB LED SCCT 8"-DK BRZ
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Weight Lb.:
0.55
Manufactured By:
Nuvo
